The CV+ Kerf cut Finished Backs UCS Allows The User To Quickly Add Kerf Cuts To Finished Backs That Are Named Kerf.

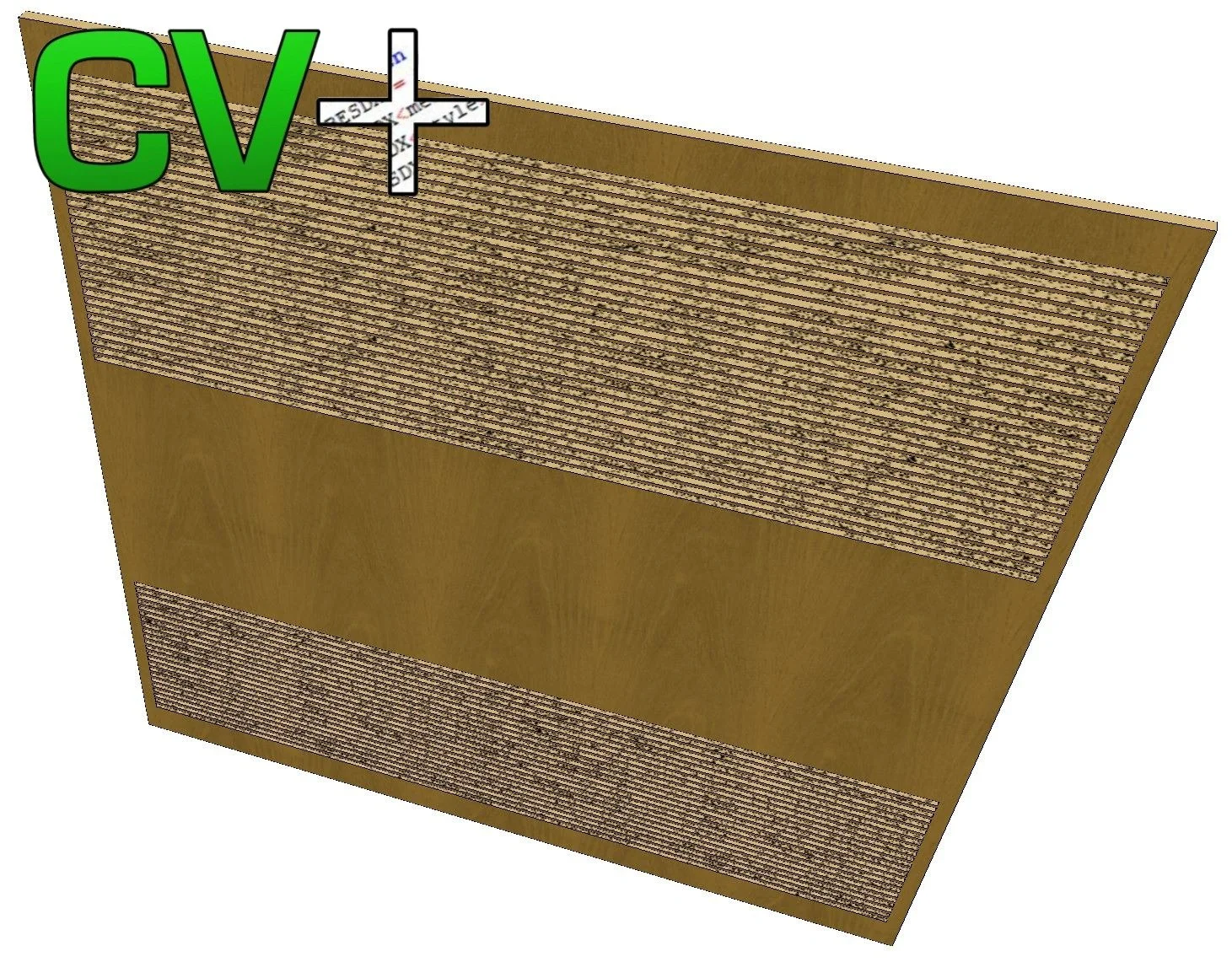

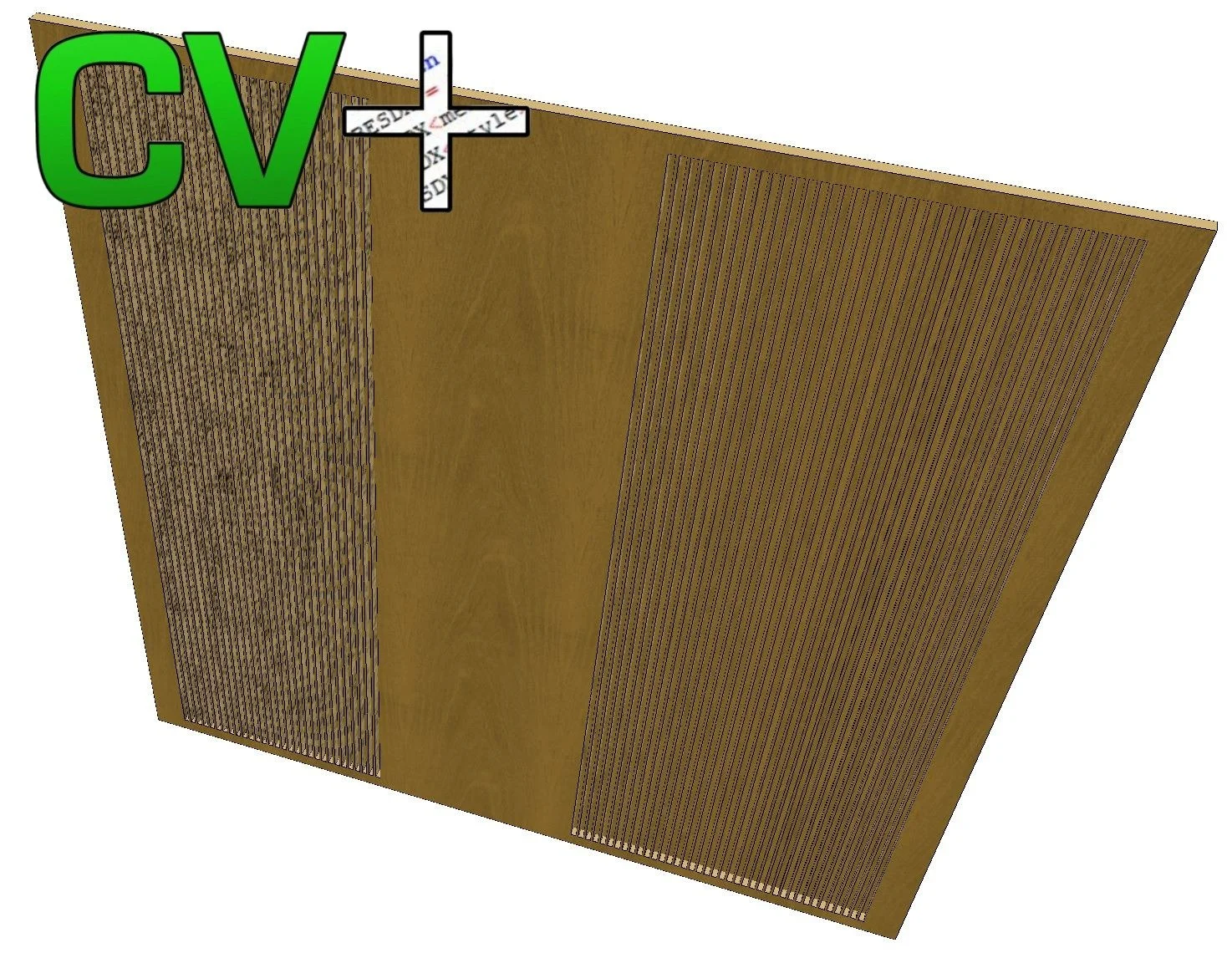

Up to 2 Individual Sections For Kerf Cutting.

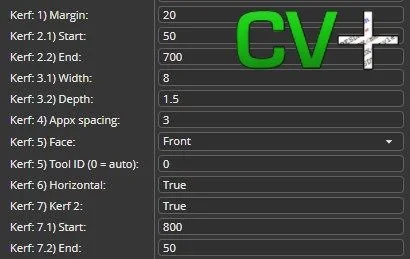

Set Your Standards Via Public Variables On The UCS Itself
When The Panel Is Selected User Can Edit Every Aspect Of The Below.
Start And End Positions For Each Of The Optional 2 Kerf Cut Areas.
Width And Depth Of Kerf Cut. Adjust
Approximate Spacing. Maintains Start, End and Route Width. Spacing Is Calculated To Be As Close As Possible To You Preferred Spacing ~1mm
This UCS Only Works On Finished Backs That Are Named “Kerf”. Make Sure To Click The Check Box To Allow UCS Modification When Adding The Part To Your Cabinet
Need Help Installing Or Understanding Triggers To Activate The UCS? Limited Support Is Included With All Packages Provided By CV+
